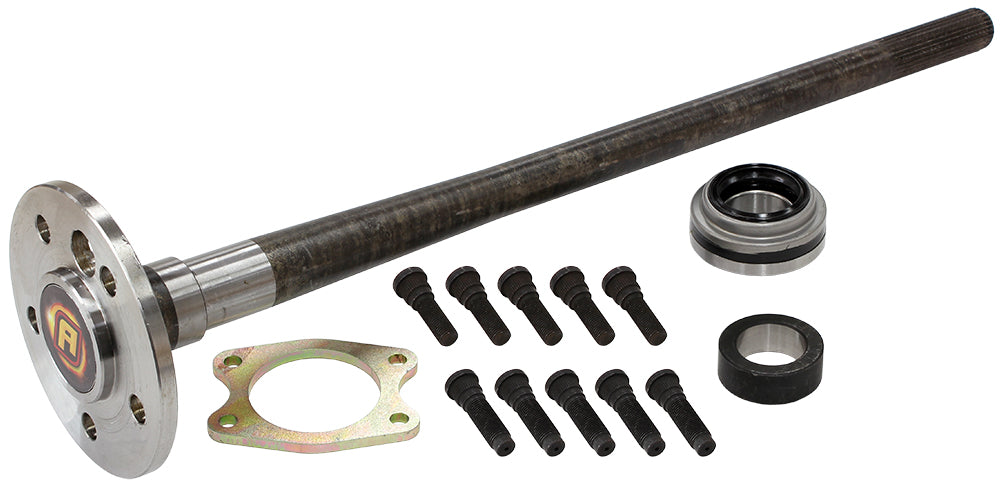

AXLE FORD 9in 28spline 28in with BEARING Cut to

The Aeroflow Performance Ford 9in cut to fit axles are perfect for entry level users and will allow you to build your own custom width rear end easily. They are an induction heat treated forged 4140 steel construction axle with a natural finish and are SOLD AS ONE AXLE only. Axle length is measured from the flange to the end of the splines. Drilled for 5 on 4-1/2in wheel bolt patterns using 0.685in (17.39mm) knurl diameter for wheel studs which are included.These axles use the new style big bearing ends on it which measures 3.150in (80mm) with a 2.5in (63.50mm) offset. The hub pilot (centre of the axle flange) measures 3.055in (77.59mm). The O.D. of the axle flange measures 5.93in (150.62mm). They are available in 28 spline with lengths of 28in (711.20mm) and 32in (812.80mm) with a spline length of 4in (101.60mm).Each axle kit contains the following:1 x Cut to Fit Axle5 x 7/16in wheel studs5 x 1/2in wheel studs1 x Axle retaining plate1 x Axle bearing kit1 x Axle bearing collar.
