CLUTCH BEARING HYD HI RISE DIAPHRAGM

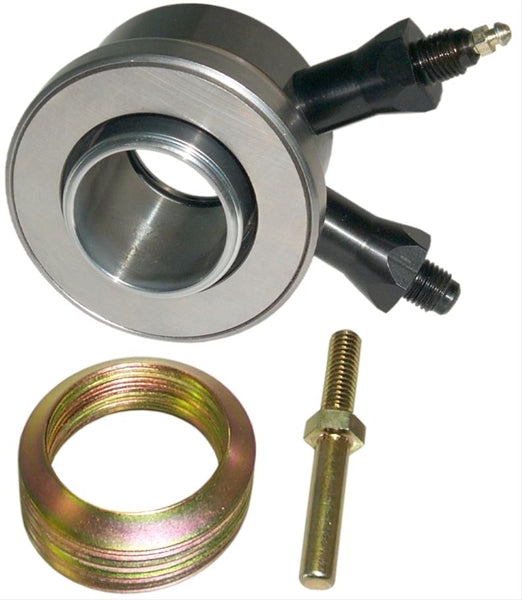

Howe's Universal self aligning Hydraulic throwout Bearing, can be used on stockcars, Saginaw, T-10, Muncie, Jerico, etc, and transmissions that will take a 1.379 in. ID bearing. Compressed thickness is 1.652in and 2.441in when extended giving .688in of travel. Alternate round face bearing available GSB319.Designed for racing classes that require a stock type clutch. Installs by replacing one bolt on the front of the transmission. Conical shims are provided for static height adjustment. A 3/4in bore master cylinder and a minimum 6:1 ratio pedal is recommended for comfortable operation, it is mandatory to check if Pedal Stop is required. Pressure exceeding 1,500 psi. can damage the O-rings.
