ENGINE MOUNT ADAPTER CHEV LS ENG SWAP UNIV

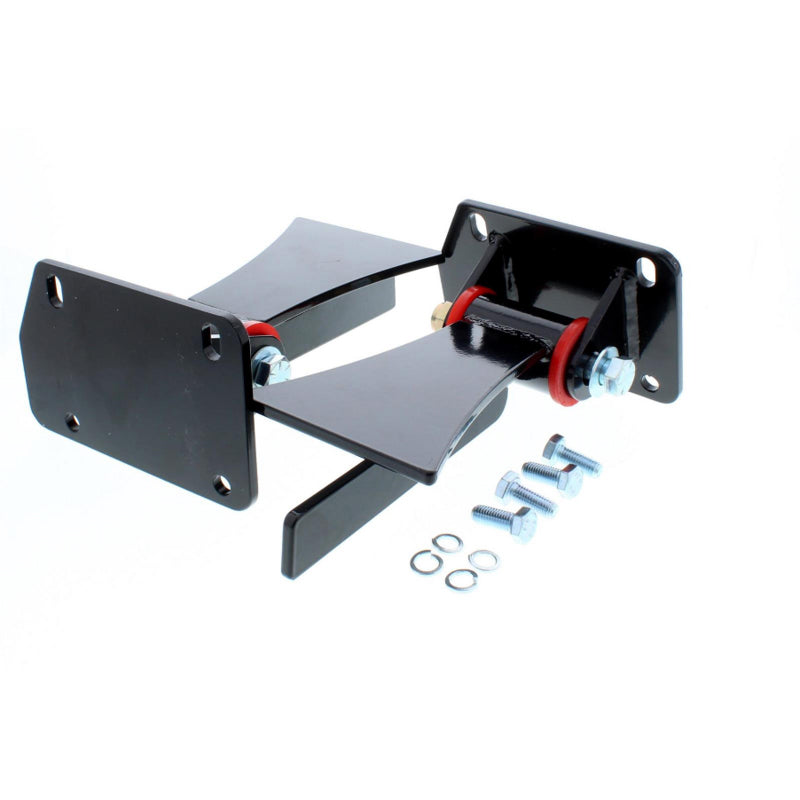

Weld in type, Engine Mount Adapter kits allow you to put the Chev & Holden LS1 or LS6 engine in your project. They have urethane bushings and include both the engine and frame brackets. Frame brackets must be cut to fit and welded to frame. Specs4-bolt engine flange measures 6-5/8in x 4-1/2in with one corner angled offBolt holes are 4-3/8in horizontal and 3-1/4in vertical with the vertical holes slotted for adjustmentFrame mount is 6-1/2in from center of bushing sleeve to end of weld on tabLower weld on tab extends an additional 1-1/4in further than the top tabBushing outside diameter is 1-1/2in and bushing length is 2-7/8in
